Alpha Wireless Tank Monitoring System

 SatComm Gateway System receives tank level information from any Alpha Wireless tank monitor and transmits the data to the  Data Center using the Orbcomm Low Earth Orbit satellite network. Use it in mining pits, quarries, construction sites, offshore, rural and wilderness tank storage facilities where phone lines and cellular communication is either unavailable or unreliable.

Features:

• Supports up to 25 Alpha RF tank monitors
• Satellite coverage throughout the US, Canada,
  Mexico, Central and South America
• Easy to install
• Up to 3 alarm levels for each tank
• Remotely set up and revise the reporting schedule and alarm
  levels from your  WebView account
• The solar power options are tailored for optimum
  performance in any location
• Secure data transmissions
• No maintenance

• Radio range: 1 mile line of sight between SatComm
  Gateway and Tank Monitors
• Operating Temperature Range: -40° F to +140° F
• Input: 100-240 VAC, 1A, 50/60 Hz. or 12 VDC
• Gateway enclosure: Nema 4x for outside use;
  11.0" L x 7.5" W x 5.0" H

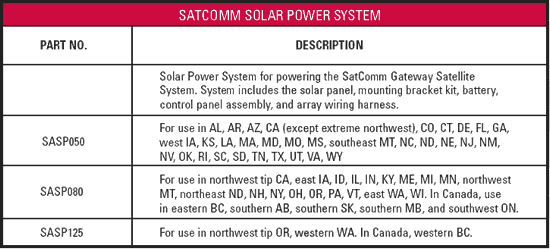

• Solar Panel Options: 50W, 80W, and 125W
• Complies with FCC Part 15
• Conforms to UL 60950-1 and CAN/CSA 22.2 No. 60950-1

Alpha Wireless System

We start with the monitor. It's wireless, so no special know-how or tools are needed to install it. It's powerful, too. Our DSSS radio technology is far superior to the narrow bandwidth radios found in other wireless systems. That means the alarm signal gets through even in the harshest environment.

The monitor sends the tank level data to the SatComm Gateway. The Gateway collects the data then sends it to the  Data Center. From there, you can retrieve your info anytime, wherever you are.

Just think about what that information can mean to your business. An up-to-date, accurate account of tank level allows you to deliver your product when it needs to be delivered. Alpha Wireless puts you in control so you can manage your business better.
